Belmont Radio model 5P113
"Belmont Boulevard" 5P113 shirt pocket radio



HOME

FOR SALE & GALLERY RADIOLA INFO WHAT'S NEW RESOURCES
LINKS AT AUCTION INFORMATION CONTACT updated 8/09/2017

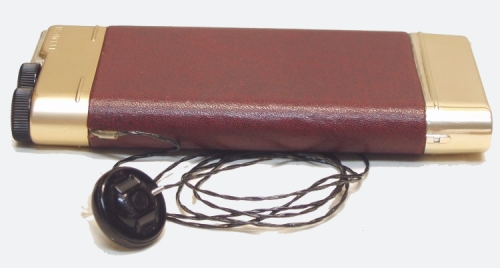

Circa 1946,  a Rare and Historic receiver

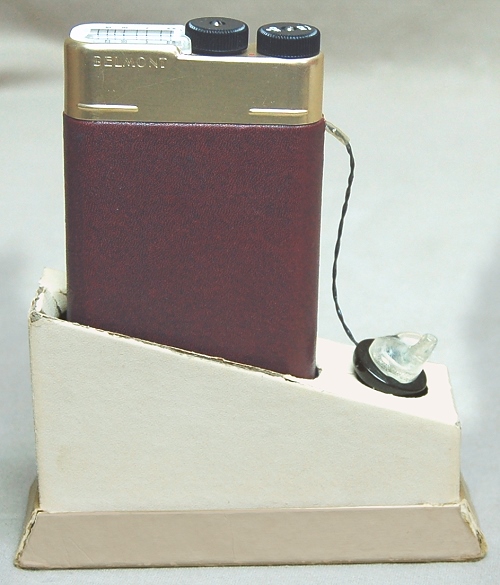

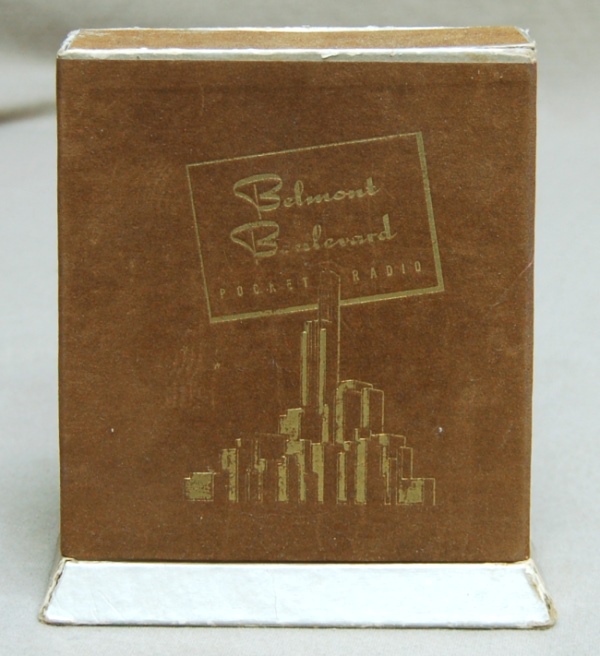

presentation box


w/top removed

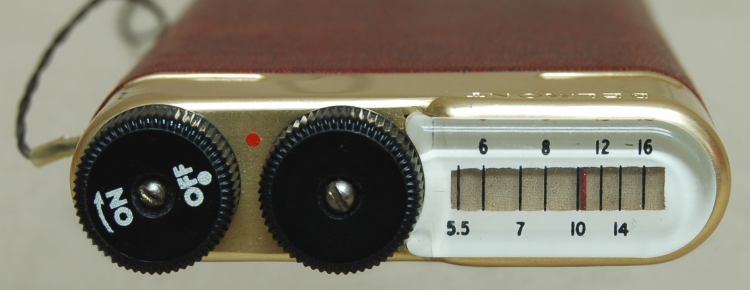

top close-up

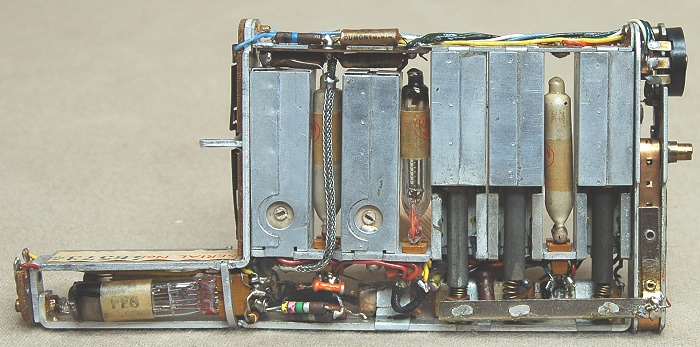

insides

First: Consumer product by BELMONT after W.W.II
First: Shirt pocket Superhetrodyne receiver
First: Consumer product using
subminiature tubes

This rare and neat little set has long been sought after by myself and recently won on an eBay auction. I was very fortunate in that it is complete with the original presentation box and paper instructions/owners manual. There is no indication that it was ever used. Features: full 5 tube Superhetrodyne circuit with AVC, 455 KC If's, earphone only operation and a built in antenna (it's part of the earphone wiring). Battery requirement: 1-22.5 volt "B" battery, 2-1.5 volt "A" battery. A true shirt pocket radio measuring just 6" X 3" X 5/8", weight w/o batteries, 10 oz. Be sure and read my article on the
subminiature tube
.

Click here for my page on subminiature tube radios.

A reproduction of the ad, owners manual and schematic are available, see samples from the above "thumbnails", prices below:

   FOR SALE:

 < click to purchase reprint of the 1946 full page ad
 < click to purchase  owners manual reprint

the radio is no longer available
